HT-2/M/ZIRKON-120

The HT-2/M/ZIRKON-120 Sintering oven from Mihm Vogt provides the capacity, capabilities and consistent reliability required for the results you desire.  Offering 33% more sintering capacity over previous HT models, the HT-2 allows for up to 90 individual units with three 120mm diameter stack-able trays. The heating chamber is equipped with six high purity “PRO” Molybdenum Disilicide (MoSi2) heating elements that provide longevity and performance with speed and regular cycles.

The HT-2 features thirty 4-stage user-definable program addresses, plus three pre-programmed maintenance and service programs.  Some program slots contain special program functions such as ventilated heating and pre-dry capabilities.

Technical information for HT-2/M/Zirkon-120

Power Max: 3800 W
Voltage range / frequency: 200-240 V / 50-60 Hz
Weight: 74 kg
Dimensions (W x D x H): 500 x 560 x 820 mm
Process capability: Speed / Regular
Max. temperature: 1650°C
Max heat rate: 99°C/Min
Temperature accuracy at 1500°C +/- 3°C
Heating elements: 6 x MoSi2 “PRO”
Heating-chamber height: 102 mm
Maximum capacity: 3 x 120/30mm sintering dishes (approx. 90 single units)
Programs User Definable x 30  / Pre-Installed Maintenance x 3









1
1





1
1

More Images of Mihm Vogt HT-2

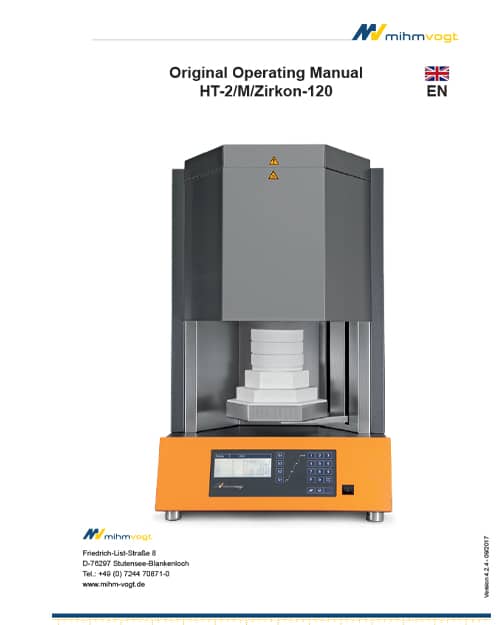

Documentation (PDFs)
