Mihm Vogt HTS-2/M/ZIRKON-120

The HTS-2 offers consider changes over previous HT-S models!  A larger sintering capacity over previous HT-S models of up to 60 individual units with two 120mm stack-able trays. A heating chamber with four high purity molybdenum disilicide (MoSi2) “PRO” heating elements allows for conventional long-term sintering cycles or increased SPEED-sintering cycles with a heat rates up to 99°C/minute.

The simple, practical handling of the HT series program control was incorporated for easy programmability and optimum functionality, while for added convenience service programs are pre-programmed. Some program slots now contain program functions older models did not.

The redesigned table insulation no longer requires pin tray supports while still ensuring temperature homogeneity with increased capacity.


  • Four-line LCD-display for easy program parameter viewing
  • Timer function for sintering overnight or using drying programs for wet-milled restorations
  • Three service programs have been added for easy servicing the heating chamber and the heating system
  • High-quality molybdenum-disilicide heating elements “PRO”
  • Maximum temperature 1650°C
  • Heating-chamber capacity 2x Ø 120/30 mm
  • Program control (LCD-Display, 4 stages, 30 program capacity, Special functions)
  • Service programs; A - Temperature control* only in conjunction with test-kit, C-Purge heating chamber, E- Regenerate heating elements
  • Thermocouple PtRh-Pt, type S
  • Temperature accuracy at 1500°C +/- 3°C
  • Timer function

Technical information for HTS-2/M/Zirkon-120:

Power Max: 3200 W
Voltage range / frequency: 200-240 V / 50-60 Hz
Weight: 60 kg
Dimensions (WxDxH): 390/500/790 mm
Process capability: Speed/Classic
Max. temperature: 1650°C
Heating elements: MoSi2 “PRO”
Number of heating elements: 4
Heating-chamber height: 72 mm
Max. heating-chamber capacity: 2 Qty – 120/30mm sintering dishes (approximately 60 single units)

Heritage meeting future demands with a technological edge
As one of the leading manufacturers of dental laboratory appliances in the world, MIHM-VOGT GmbH & Co. KG remains a family owned company based in Karlsruhe Germany. over the past 60 years we have acquired valuable experience and continue to offer innovative products and solutions reflecting the latest state-of-the-art technology.

Mihm Vogt HTS-2/M/ZIRKON-120

More Images of Mihm Vogt HTS-2

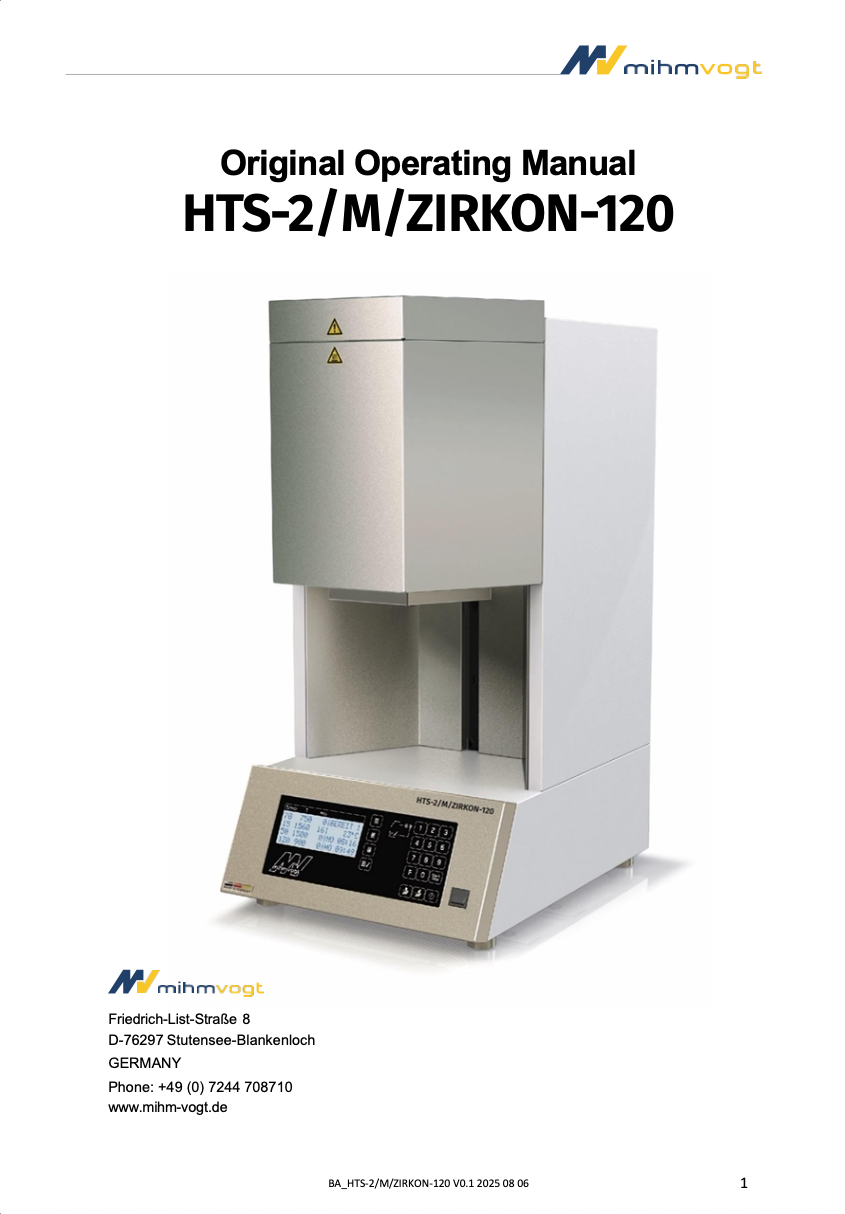

Documentation (PDFs)


Heating Element Replacement

Chamber Ceiling Insulation Replacement

Cooling Fan Replacement

Thermocouple Check / Replacement

Controller Replacement
