ZUBLER Z-505 Wet Milling Machine

Wet Milling for Ceramic and Metal

The Zubler Z-505 wet milling machine is a culmination of combined efforts between Zubler USA and Aidite to bring you an incredible line of milling machines with uncompromising features and unbelievable value!  The consistency of results and capabilities provide any lab the ability to produce high quality prosthesis at a high pace!

The Zubler Z-505 wet milling machine provides consistent precision milling for ceramic and metal including lithium disilicate and pre-milled abutments!  The structure is designed to eliminate vibration and features a precision harmonic reducer.  Equipped with ball screw and linear guide rails, a 1.5KW Spindle with 6mm collet, 6 piece fixture for titanium pre-milled abutments or ceramic blocks and a 6 tool magazine the Zubler Z-505 wet milling machine was designed to provide daily repeatability, precision and durability.

Z-505 Specifications

Materials Ceramic and Metal
Tool Measurement Sensitivity 5μm (Tool Length Sensor with break detection)
Milling Environment Wet Tool Sizes (Allowable) 0.6mmΦ – 0.3mmΦ
Axis Quantity / Rotational Angles 4 Axis / B Axis ±360° Loadable Work piece Size (WxDxH) 55mm x 20mm x 20mm
Axis Type Ball Screw /Linear Guide Rails Mill Capacity 6-Pc Ceramic Block fixture / 6-Pc Abutment Fixture
Axis Motor Type Digital AC Servo Motor Calibration Auto Calibration
Milling & Repeat Position Accuracy 8μm CAM Software Hyperdent
Spindle Colet Size / Tool Diameter 6mm Interface Touch Screen CNC Interface
Spindle Cooling Method Liquid Cooled Compressed Air Requirement 6 Bar @ 60L/Min
Spindle Max Speed 60,000 RPM Dimensions  (DxWxH)  720mmx560mmx800mm
Spindle Power 1.5KW Power (Max) 2.2KW
Tool Changing Automatic Voltage / Frequency 220V 50/60Hz
Tool Magazine Capacity 6 (3 for Glass / 3 for Pre-milled Abutments) Weight 160Kg

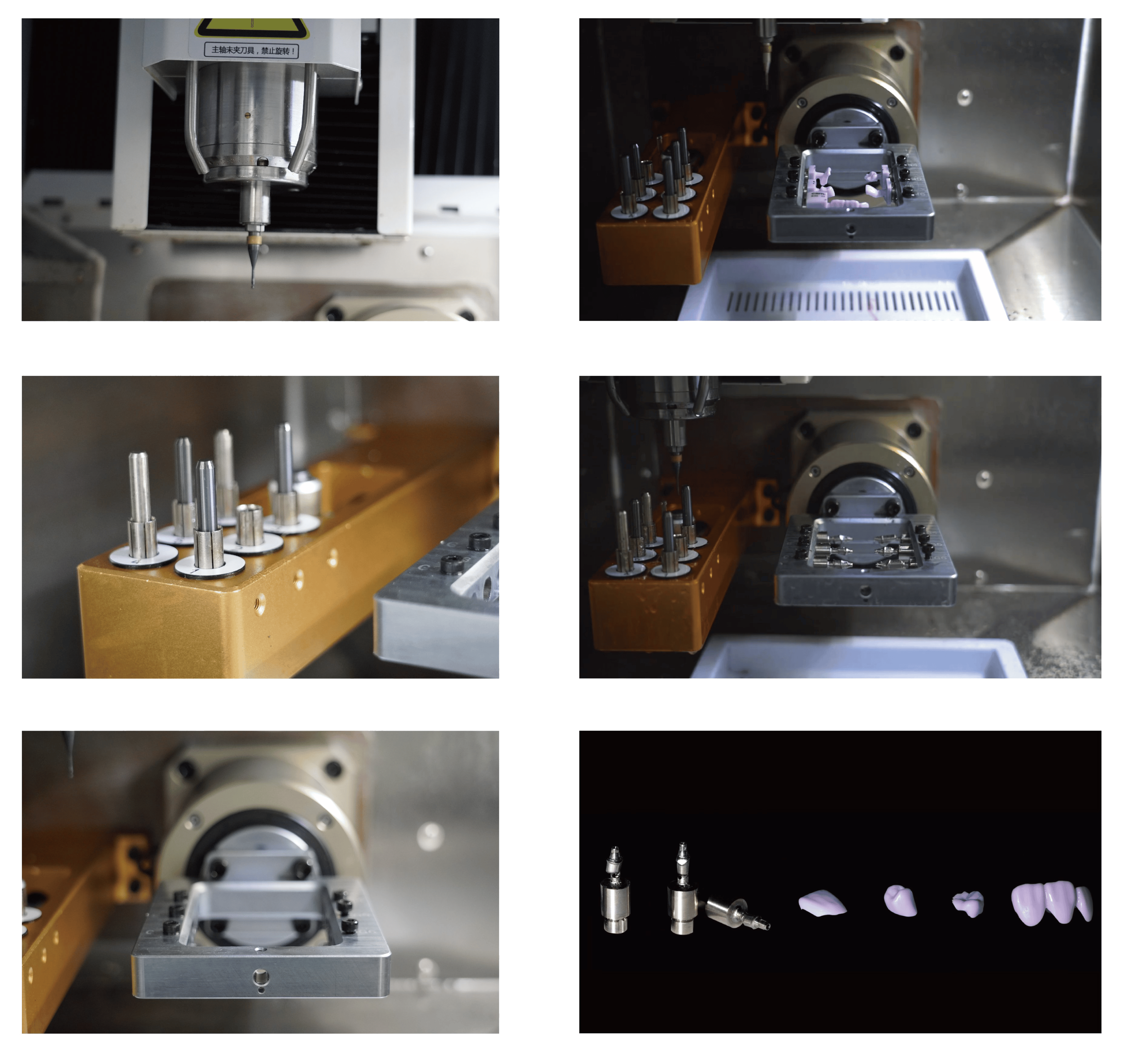

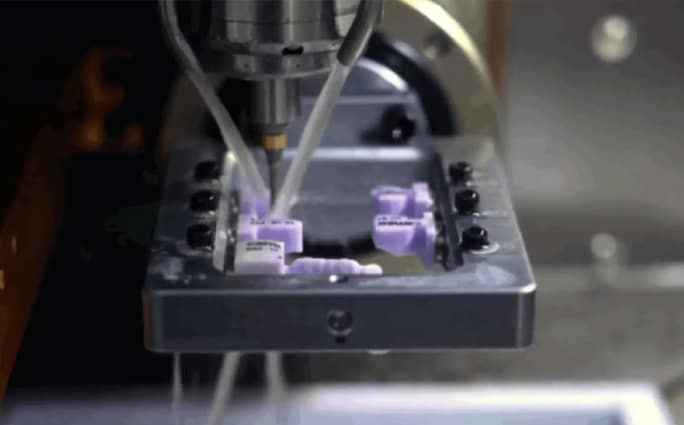

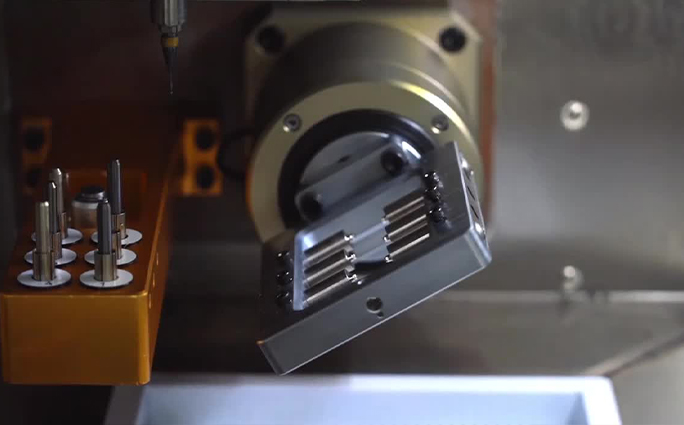

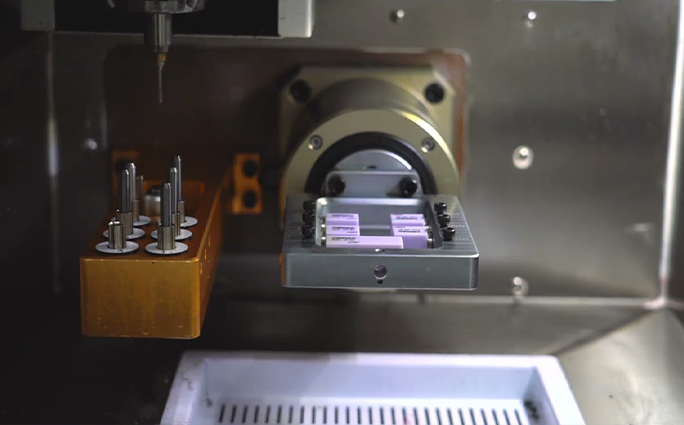

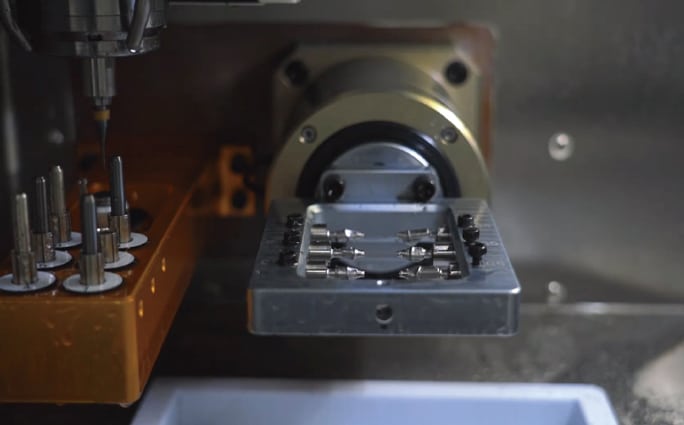

More Images of Z-505 Milling Machine
