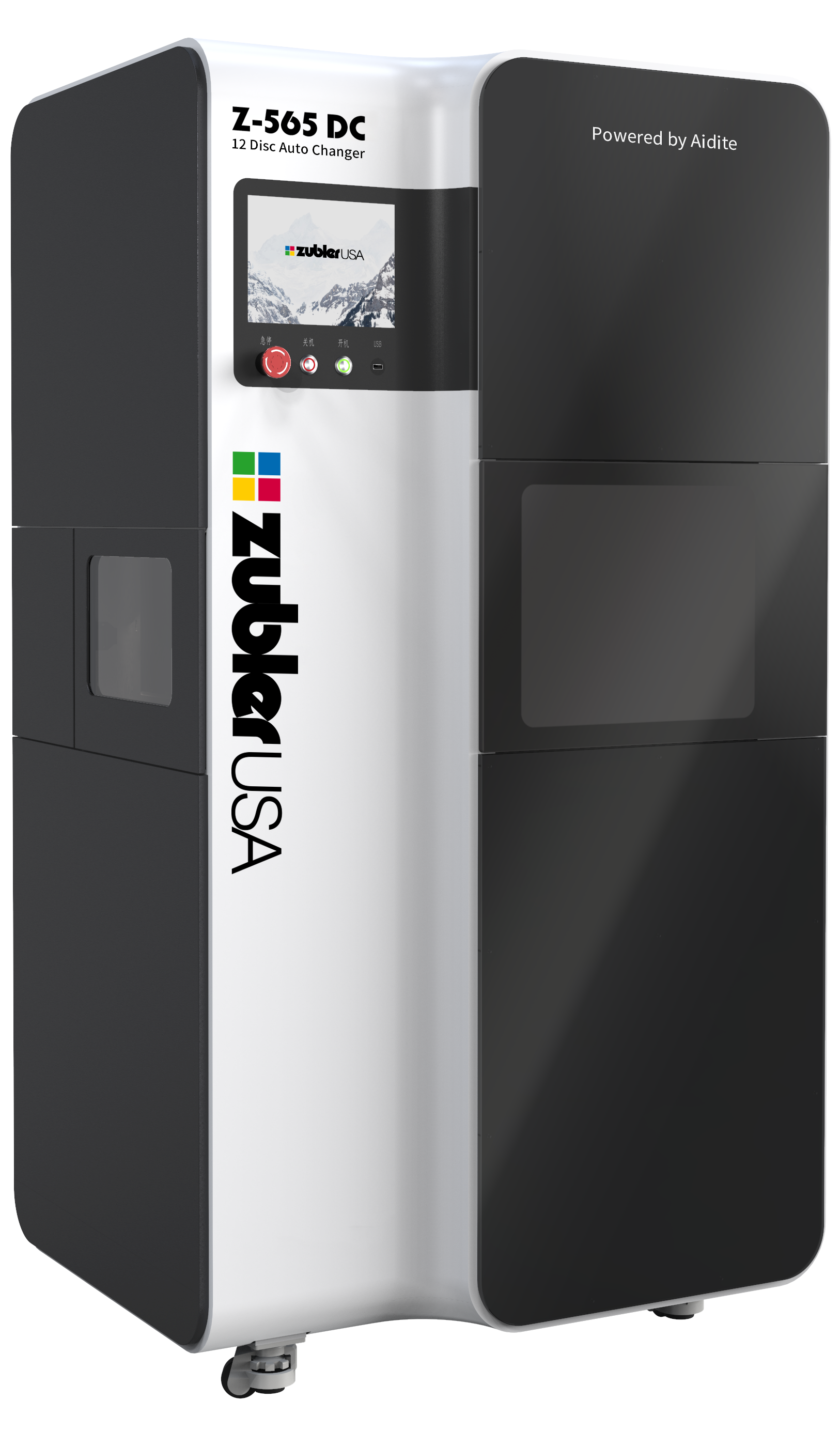

ZUBLER Z-565 DC Milling Machine

12 Disc Changer / Simultaneous 5 Axis Dry milling for Zirconia, PMMA & Wax

The Zubler Z-565 DC milling machine is a culmination of combined efforts between Zubler USA and Aidite to bring you an incredible line of milling machines with uncompromising features and unbelievable value!  The consistency of results and capabilities provide any lab the ability to produce high quality prosthesis at a high pace!

The Zubler Z-565 DC milling machine provides features a 12 disc C-clamp auto changer!  The structure is designed to eliminate vibration and features a precision harmonic reducer.  Equipped with ball screw and linear guide rail axes, a 1.5KW Spindle with 6mm collet, twelve 98.5mm 50% open face C-Clamp disc holders and 10 tool magazine for the ultimate in automated CAD/CAM production.

Get more done, without constant disc changes!  Load and go!

MODEL  ZUBLER Z-565 DC
Environment / Materials  Dry for Zirconia, Wax, PMMA, Composite
Axis Quantity / Rotational Angles 5 Axis / A Axis ±28° / B Axis ±360°
Axis Motor / Type Digital AC Servo Motor / Ball Screw /Linear Guide Rails
Milling & Repeat Position Accuracy 5μm
Spindle Collet Size / Tool Diameter 6mm
Spindle Liquid Cooled / 1.5 KW /60,000 RPM
Tool Changing Automatic
Tool Detection Sensativity 5μm (Tool Length Sensor with break detection)
Tool Magazine Capacity 10
Tool Sizes (Allowable) 0.2mmΦ – 6mmΦ
Mill Capacity 12 Disc / C-Clamp Auto Changer
Calibration Auto calibration
CAM Software Hyperdent
Interface Touch Screen CNC Interface
Compressed Air Requirement 6 Bar @ 60L/Min
Dimensions  (DxWxH)  930mmx750mmx1760mm
Power (Max) 3.5KW
Voltage / Frequency 220V 50/60Hz
Weight 460Kg

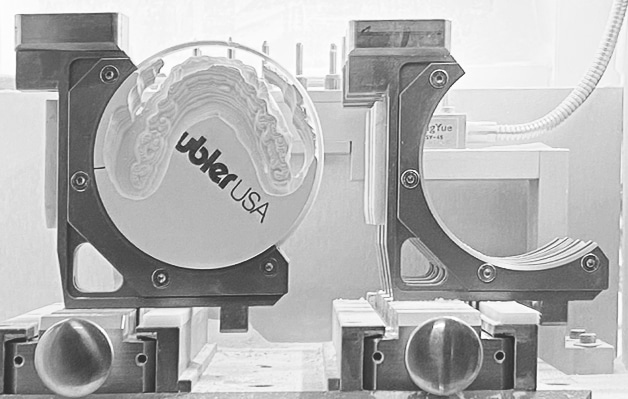

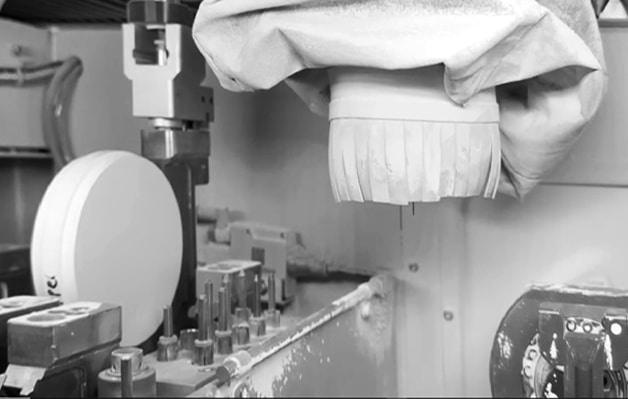

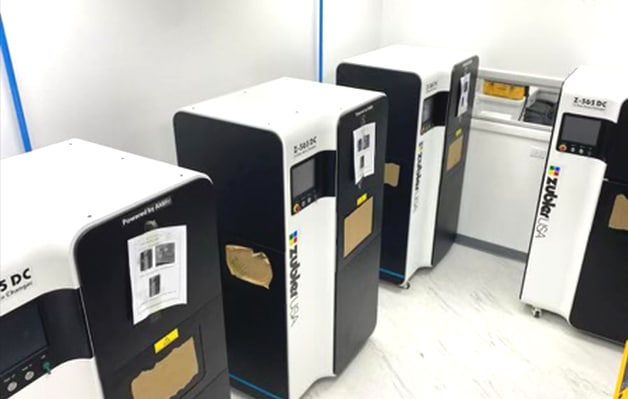

More Images of Z-565 DC Milling Machine
